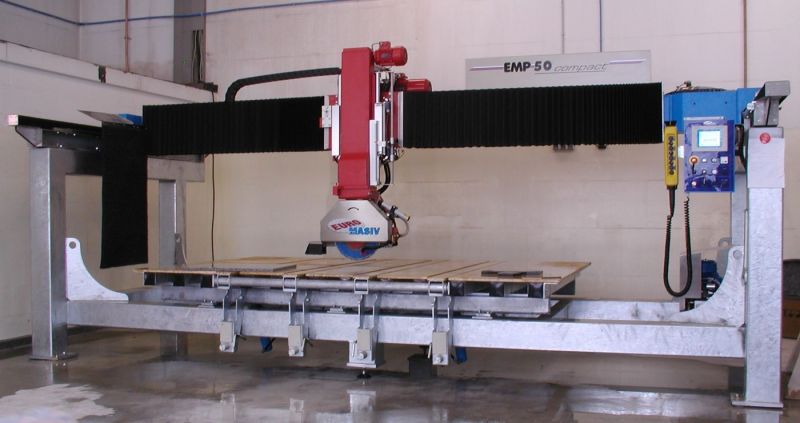

Bridge saw EMP 50 compact
Compact dimensioning saw for small stone-cutting and building plants. Designed for frequent changes of workplace.
Technical characteristics
- diameter of saw blade / max. cutting depth from 400/100 to 650/220 mm
- Cutting length 3.300 mm
- Main motor performance 7,5 – 11 kW (10 – 15 HP)
- Table size 3200 x 2000 mm
- Carriage tilting 0-45º
Special options
- Main motor revolving 0 – 90º, for lengthwise or crosscut
- Manually operated revolving table, Tipping frame or side rolling cylinders
- laser
