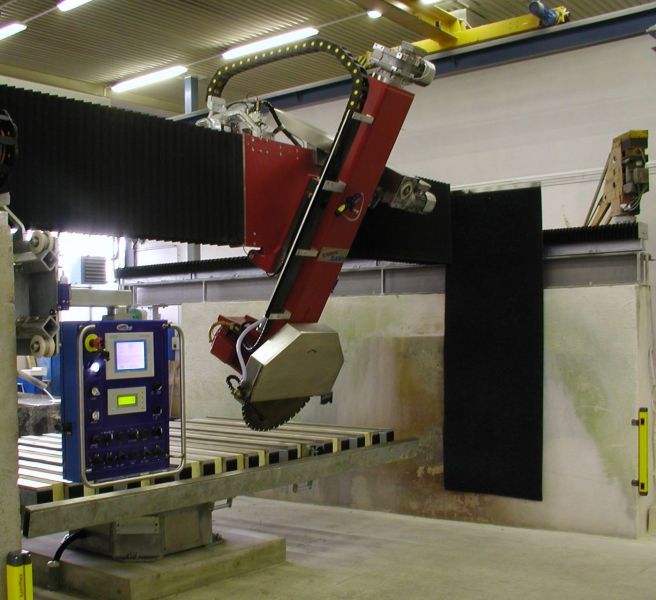

Bridge saw EMP 120
Bridge saw for accurate cutting of semi-finished products with approx. 460 mm cutting depth.
Technical characteristics
- diameter of saw blade from 1000 to 1600 mm
- Cutting length 3.600 mm
- Lifting 740 mm
- Main motor performance 23,5 kW (32 HP)
- Thick-walled frame of the bridge
- linear ball guidance
- Tilting of the saw blade or the carriage
- Central lubrication by default
- control system MITSUBISHI
- Full or gradual cutting, automatically operated
Special options
- Revolving table, manually or electrically operated
- Table size 3.100 x 1.800 až 3.500 x 2.000 mm
